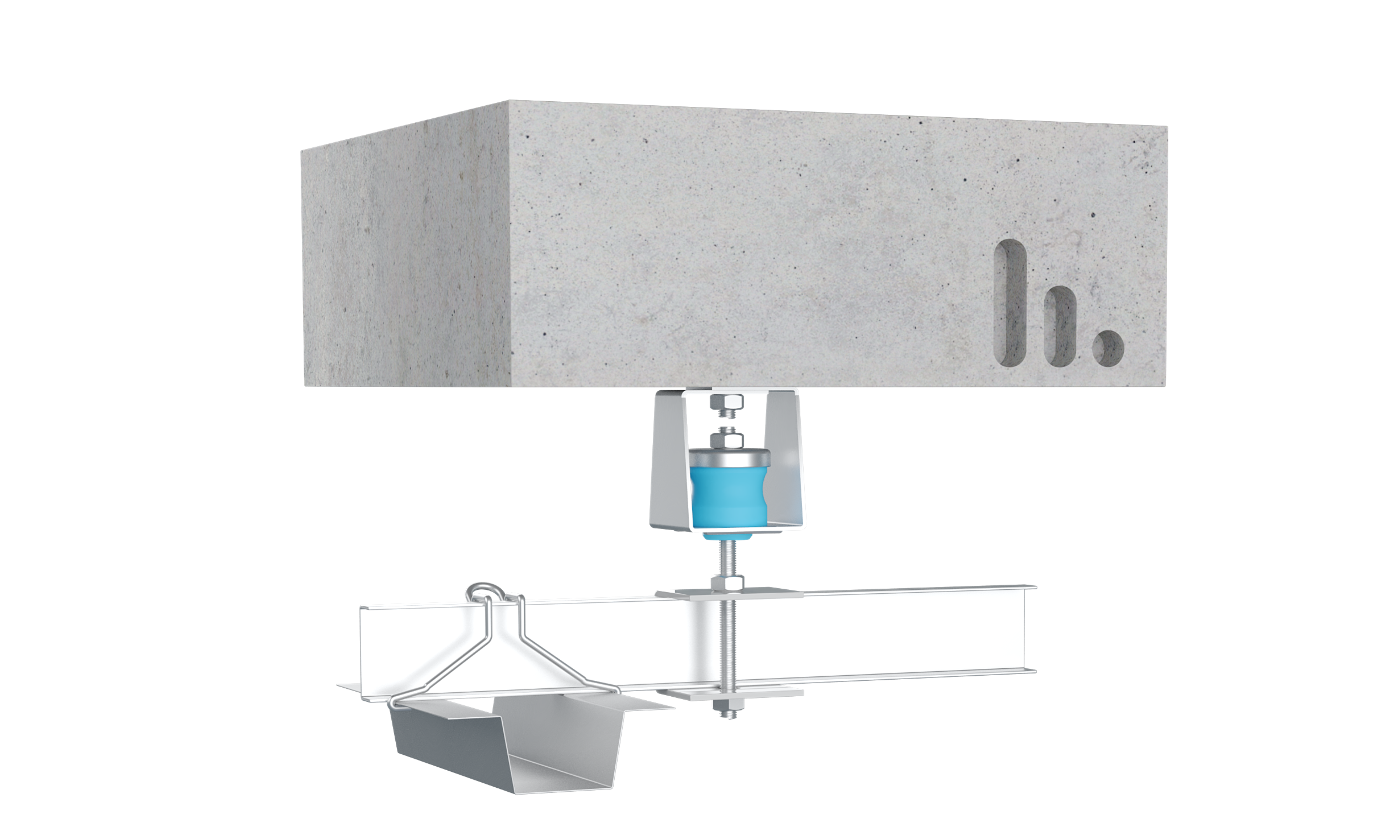

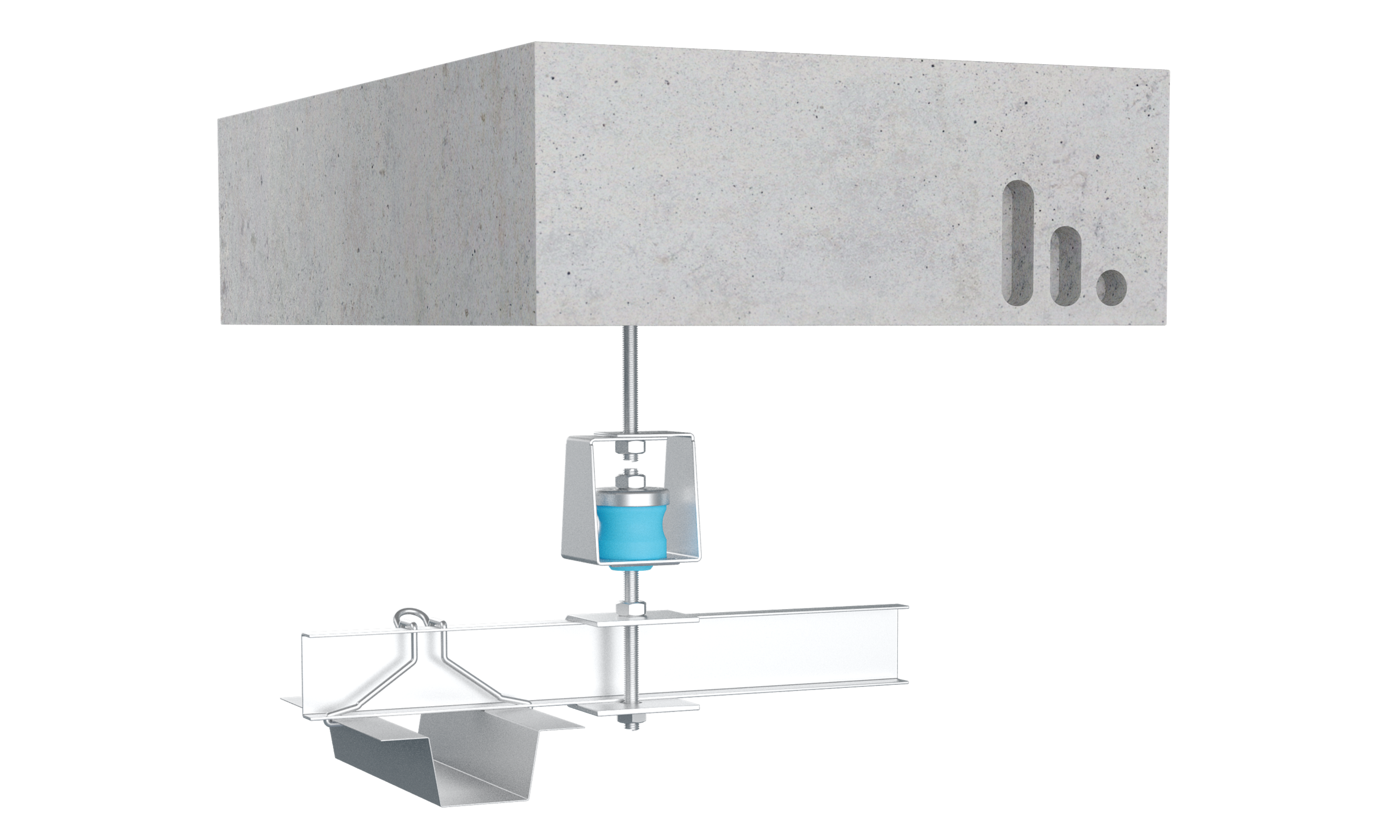

Stravilink DCH-P

Drop Ceiling Hanger with Elastomeric Pads

Stravilink DCH-P is a Drop Ceiling Hanger with Elastomeric Pads designed to fit most ceiling voids and seamlessly integrate with all ceiling types. It enhances sound insulation between vertically stacked rooms, ensuring optimal acoustic performance.

The hanger is available in two load capacity grades:

  • Stravilink DCH-P56: 10-30 kg (22-67 lbs) per hanger
  • Stravilink DCH-P81: 20-45 kg (45-101 lbs) per hanger

Main Benefits



  • Equipped with elastomeric pads featuring a natural frequency of around 8 Hz
  • Available in different elastomeric pad options, supporting loads from 10 to 45 kg (22 to 101 lbs)
  • Color-coded elastomeric pads are available for different load ranges, making it easy to verify on-site that the correct pad is used
  • Suitable for installation on various structures
  • Interfaces seamlessly with all ceiling types
  • Compact frame [62.8 mm (3-9/16'')] allows installation in most acoustic suspended ceiling voids
  • Variable void depth is possible
  • Elastomeric pad extends beyond the metal frame, preventing the rod from short-circuiting with the frame
  • Simple and fast installation process

  • Information Available to Download
