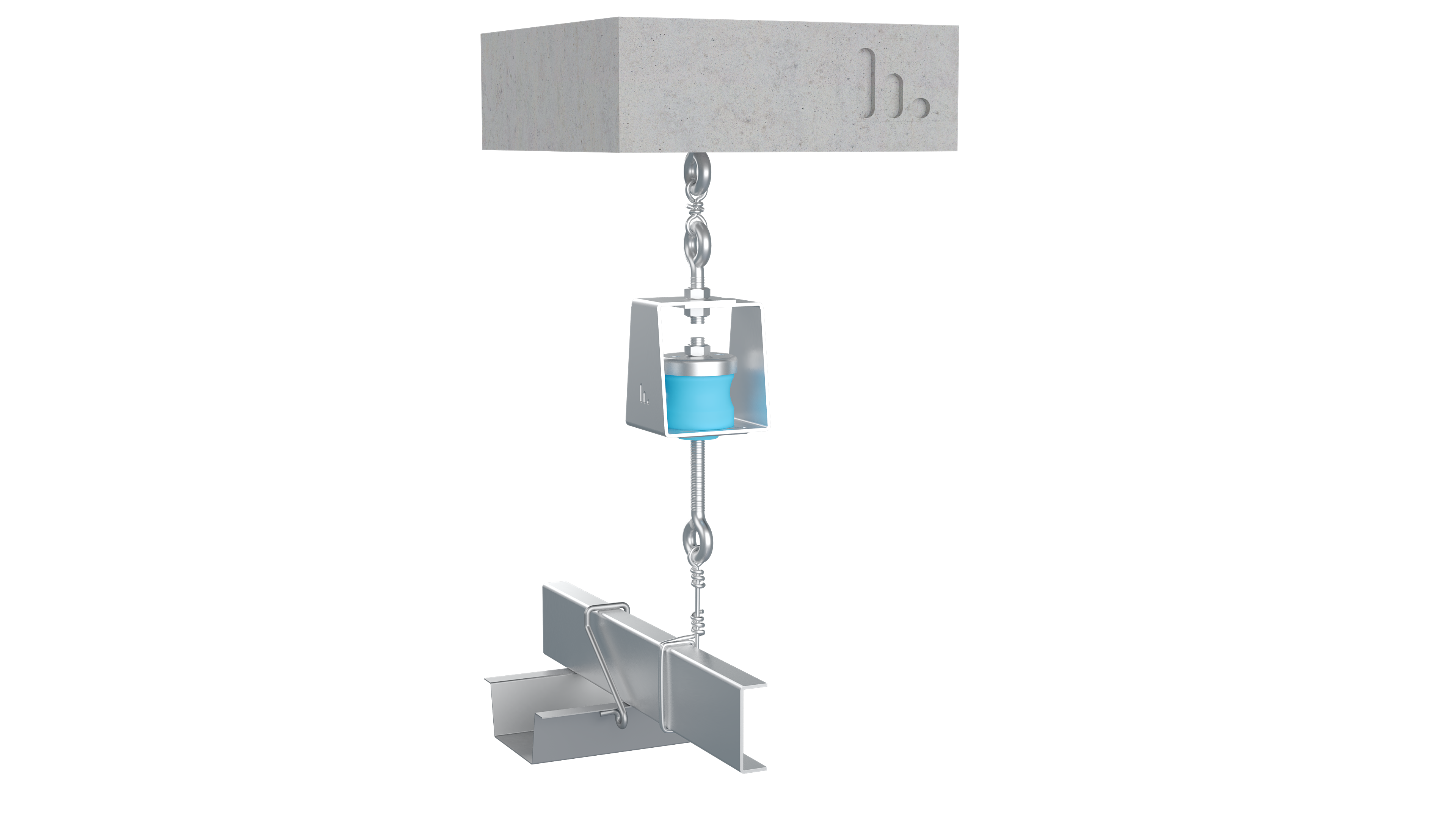

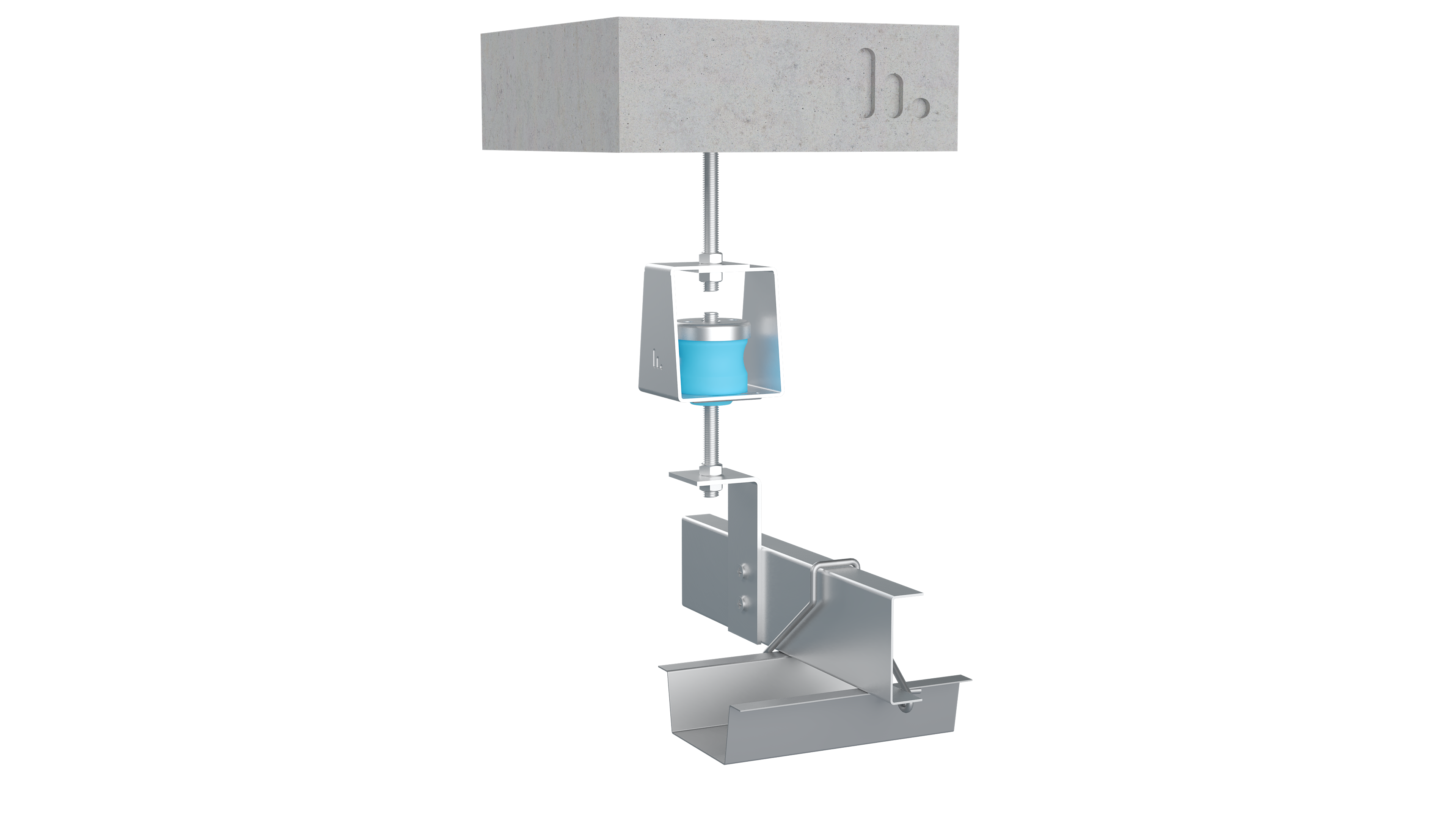

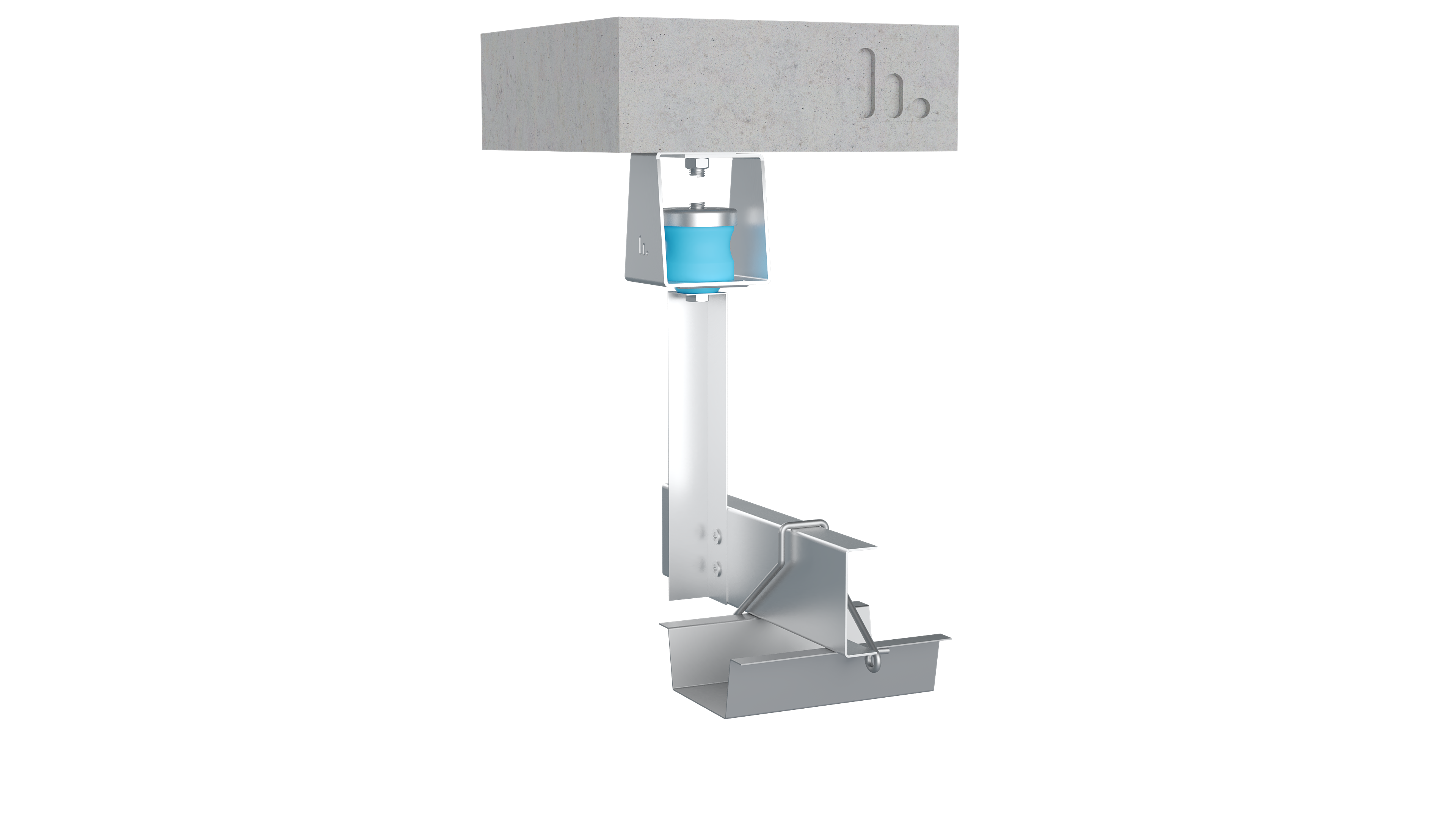

Stravilink DCH-P

Drop Ceiling Hanger with Elastomeric Pads

Stravilink DCH-P is a Drop Ceiling Hanger with Elastomeric Pads designed to fit most ceiling voids and seamlessly integrate with all ceiling types. It enhances sound insulation between vertically stacked rooms, ensuring optimal acoustic performance.

The hanger is available in two load capacity grades:

  • Stravilink DCH-P240: 10-30 kg per hanger
  • Stravilink DCH-P360: 20-45 kg per hanger

Main Benefits



  • Equipped with elastomeric pads featuring a natural frequency of around 8 Hz
  • Available in different elastomeric pad options, supporting loads from 10 to 45 kg
  • Colour-coded elastomeric pads are available for different load ranges, making it easy to verify on-site that the correct pad is used
  • Suitable for installation on various structures, including concrete and cross-laminated timber (CLT) slabs
  • Interfaces seamlessly with all ceiling types
  • Compact frame (62.8 mm) allows installation in most acoustic suspended ceiling voids
  • Supports variable void depths
  • Elastomeric pad extends beyond the metal frame, preventing the rod from short-circuiting with the frame
  • Simple and fast installation process
  • Suitable for supporting low to medium-load ductwork, pipes, and speakers
