Stravilink WallStrip

Load Bearing Resilient Strip

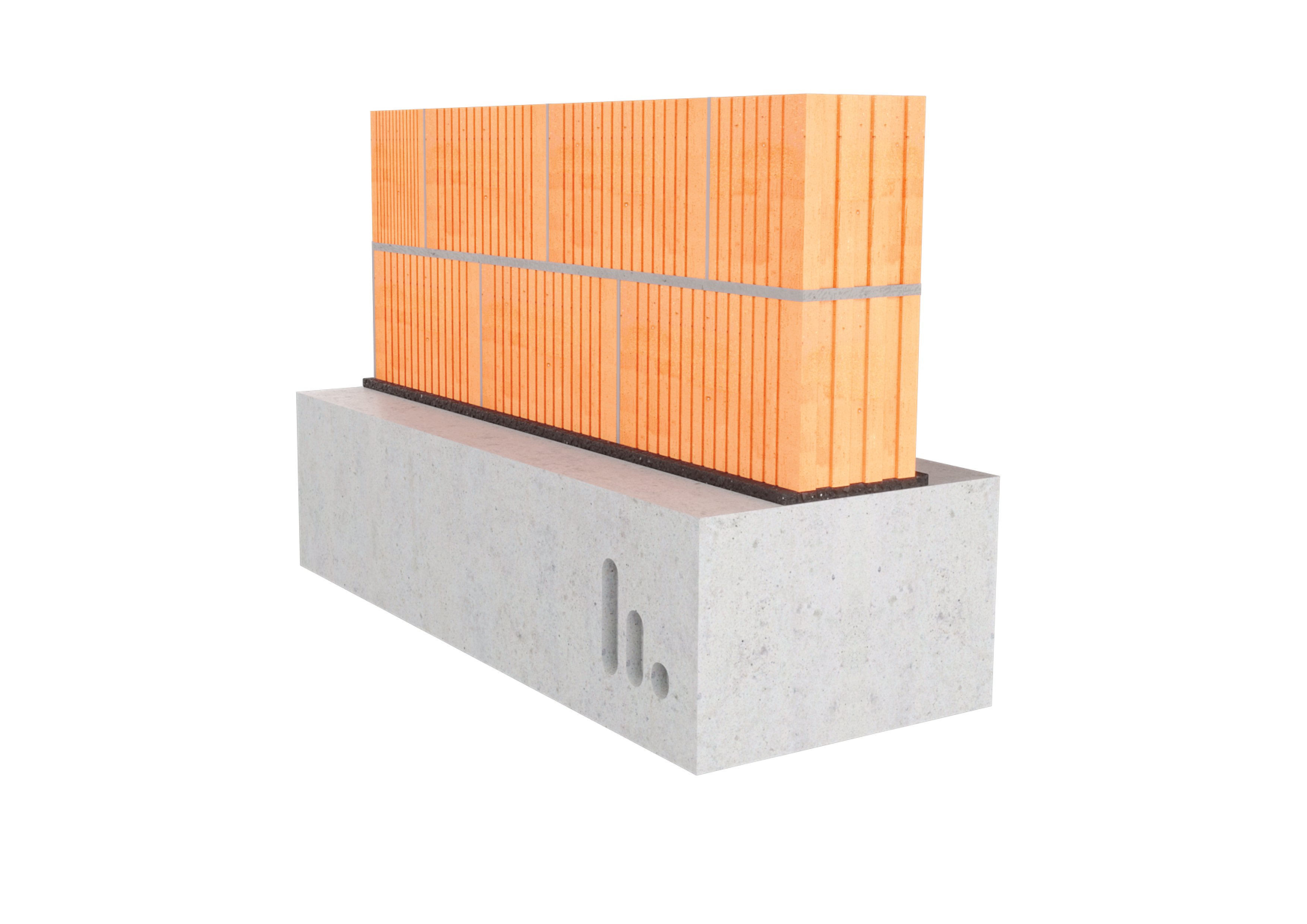

The resilient Stravilink WallStrip*, has been specially designed to minimize the flanking transmissions, and improve the vibration and structural noise isolation of load bearing walls.

Main Benefits



  • High load capacity, offering a wide range of workloads
  • Tuned dynamic performance versus static stiffness
  • Structural function by decreasing cracks effects on the wall
  • Excellent resistance to alkaline water environment (direct contact with wet concrete)
  • Excellent adhesion to materials such as gypsum and concrete
  • due to its rugged surface, ensuring an excellent lateral stiffness
  • Excellent long-term behavior (low creep / differential deflection)
  • Standard thicknesses of 5 mm (0.2'') and 10 mm (0.4'')
  • Standard widths of 130 mm (5-1/8'') and 200 mm (7-7/8'') (other widths available upon request)
  • Quick and easy to install



Design Requirements



  • Required acoustic performance
  • Wall type and dimensions
  • Possible live loads



Note: this system can work in parallel with special resilient fastening systems, such as Stravilink WH, to reinforce the lateral stiffness of the isolated wall.



*Previously known as CDM-WALL-STRIP

  • Information Available to Download

Case Studies

  • Atlântico Blue Studios (interior)

    Atlântico Blue Studios

    To prevent noise from interfering with recording, Stravilink WallStrip and Stravilink WH isolators are used to decouple the walls of the Atlântico Blue Studios.

  • Residential Building Casas do Mar (exterior)

    Casas do Mar

    Stravilink WallStrip high-performance elastomeric strips under the inner walls of Casas do Mar prevent airborne noise from causing a problem in the rooms.

  • Monte da Virgem RTP (studio)

    Monte da Virgem RTP

    Stravifloor Mat and Stravifloor Jackup systems in combination with Stravilink decoupling strips, guarantee effective noise isolation at Monte da Virgem RTP.
