Stravilink IJH-S

Isolation Joist Hanger with Springs

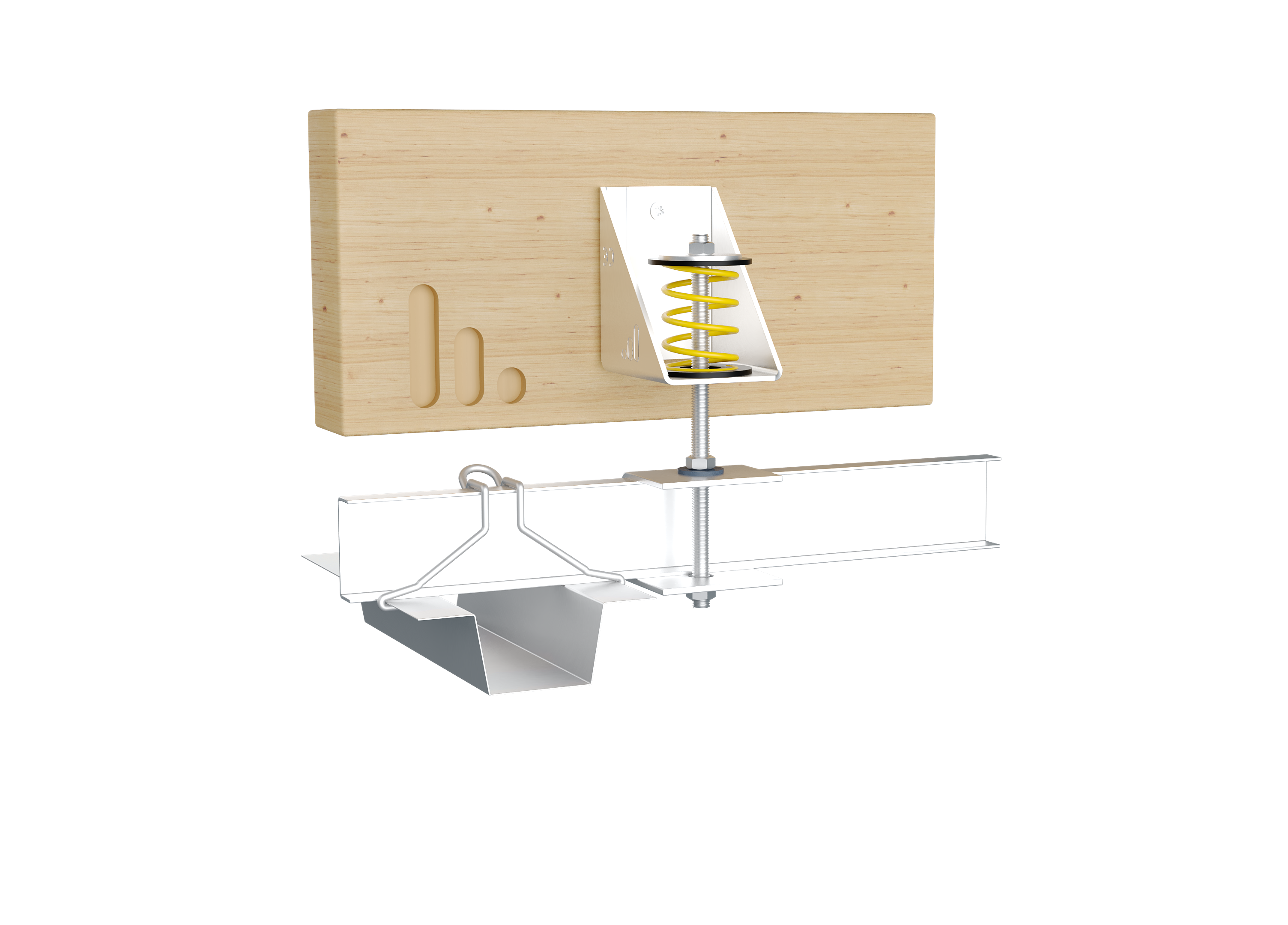

Stravilink IJH-S is an Isolation Joist Hanger with Springs, designed to support suspended ceiling systems of joist structural floors, optimizing sound isolation between vertically stacked rooms.

The hanger is available in three load capacity grades:

  • Stravilink IJH-S18: 5-11.5 kg (11-26 lbs) per hanger
  • Stravilink IJH-S56: 10-39 kg (22-88 lbs) per hanger
  • Stravilink IJH-S112: 25-78 kg (56-175 lbs) per hanger

Assemblies

Benefits

  • Specifiers

    For Specifiers

    Guaranteed Acoustical Performance:
    • Guaranteed performance on historical existing or new wooden joist timber buildings
    • Springs with a natural frequency of 4 Hz at design load deliver reliable noise and vibration isolation
    • Three springs available cover load conditions of 5 kg to 78 kg (11 lbs to 175 lbs)
    Flexible Design:
    • Space-saving option where boards can be almost immediately below the wood joist
    • Flexible void options, for limited space or increased performance
    Easy To Specify:
    • Easily integrate into project documentation and workflows with ready-to-use .dwg cross-sections and editable .doc specifications available online
  • Installers

    For Installers

    Time & Labor Savings:
    • Create flat ceilings regardless of structure conditions with the variable hanging height option
    Installation Ease:
    • Single-attachment installation method specifically designed for timber buildings for faster installation
    • Ideal for lateral attachment
    • Steel washer with 6.6 mm (1/4’’) clearance hole
    • Color-coded springs for easy ID onsite: right colour, no mistake
    Versatility:
    • Use your preferred interface (cold-rolled channel or drywall grid)


  • Information Available to Download
