Stravilink ICH-S

Spring Isolation Hanger

Stravilink ICH-S is an Isolation Ceiling Hanger with Springs engineered to acoustically decouple suspended ceilings and mechanical equipment from vertically stacked rooms. Combining engineered springs with a range of frame options, it provides a custom-fit solution for light suspended ceilings and heavy mechanical equipment, accommodating different mounting requirements, interface conditions, and available space.

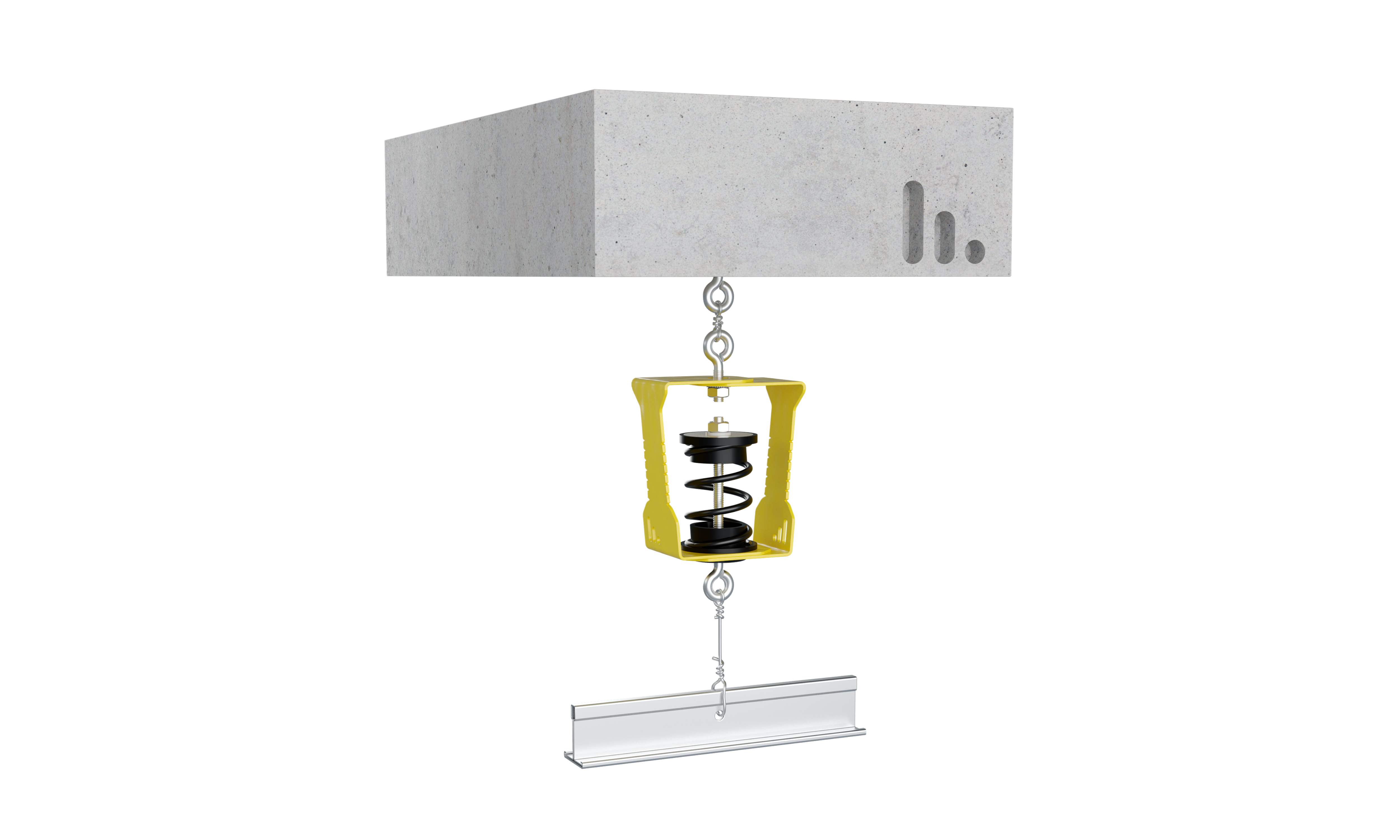

  Stravilink ICH-S Low Profile Stravilink ICH-S Light Frame Stravilink ICH-S Heavy Frame
Load Range [kg (lbs)] 2.5-100 (6-225) 2.5-100 (6-225) 44.5-367 (67-875)
Min. Void Depth [mm (inch)] 150 (6) 201 (7-7/8) 255 (10)

Assemblies

Benefits

  • Specifiers

    For Specifiers

    Guaranteed Acoustical Performance:
    • The 25 mm (1") deflection spring delivers 3.1 Hz resonance frequency at design load
    • Wide range of springs available, covering load conditions from from 6 lbs (25 N) to 875 lbs (3,670 N)
    • Acoustical performance guaranteed even with misalignments, since it has a swing tolerance of up to 30º and rubber gasket prevents the rod from short-circuiting with the frame
    Flexible Design:
    • Flexible void options starting from 150 mm (6”), for limited space or increased performance
    • Install on various structures, including concrete and CLT slabs, reducing the need for multiple product types
    Safety:
    • All springs have a minimum 70% travel from design deflection to overload condition, providing extra safety in design
    Easy to Specify:
    • Easily integrate into project documentation and workflows with ready-to-use .dwg cross-sections and editable .doc specifications available online
    Sustainability:
    • Solution disassembles for sustainable end-of-life
    • LEED Certification Available

  • Installers

    For Installers

    Time & Labor Savings:
    • Can come pre-assembled (channel clip, eyebolt, clevis pin) making on-site installation easier and faster
    • Can come pre-compressed, to limit the deflection, and to make levelling straightforward
    • Can be supplied with rivnut for easy direct fixation
    • Stravilink ICH-S-LP always comes with springs pre-compressed at 75 % of design load, with a rod and channel clip or with eye bolt
    Installation Ease:
    • Swing tolerance of up to 30º to ease the installation process
    • Overloading indicator with notched housing eliminates overloading mistakes
    • Color-coded springs for easy ID onsite: right color, no mistake
    • Easily ID complete levels on site with brightly colored housing
    Versatility:
    • Install on various structures, including concrete and cross-laminated timber (CLT) slabs, reducing the need for multiple product types
    • Use your preferred mounting method (direct mounting, rod suspension or wire suspension)
    • Use your preferred interface (cold-rolled channel/furring channel or drywall grid)


Acoustical Test Data

This solution has been tested under the setups shown alongside. If you’re looking for official test reports, editable test data (.csv), typical cross sections (.dwg) and .doc specifications of this setup or results of other configurations, visit Stravi-dB, our free online test library.
