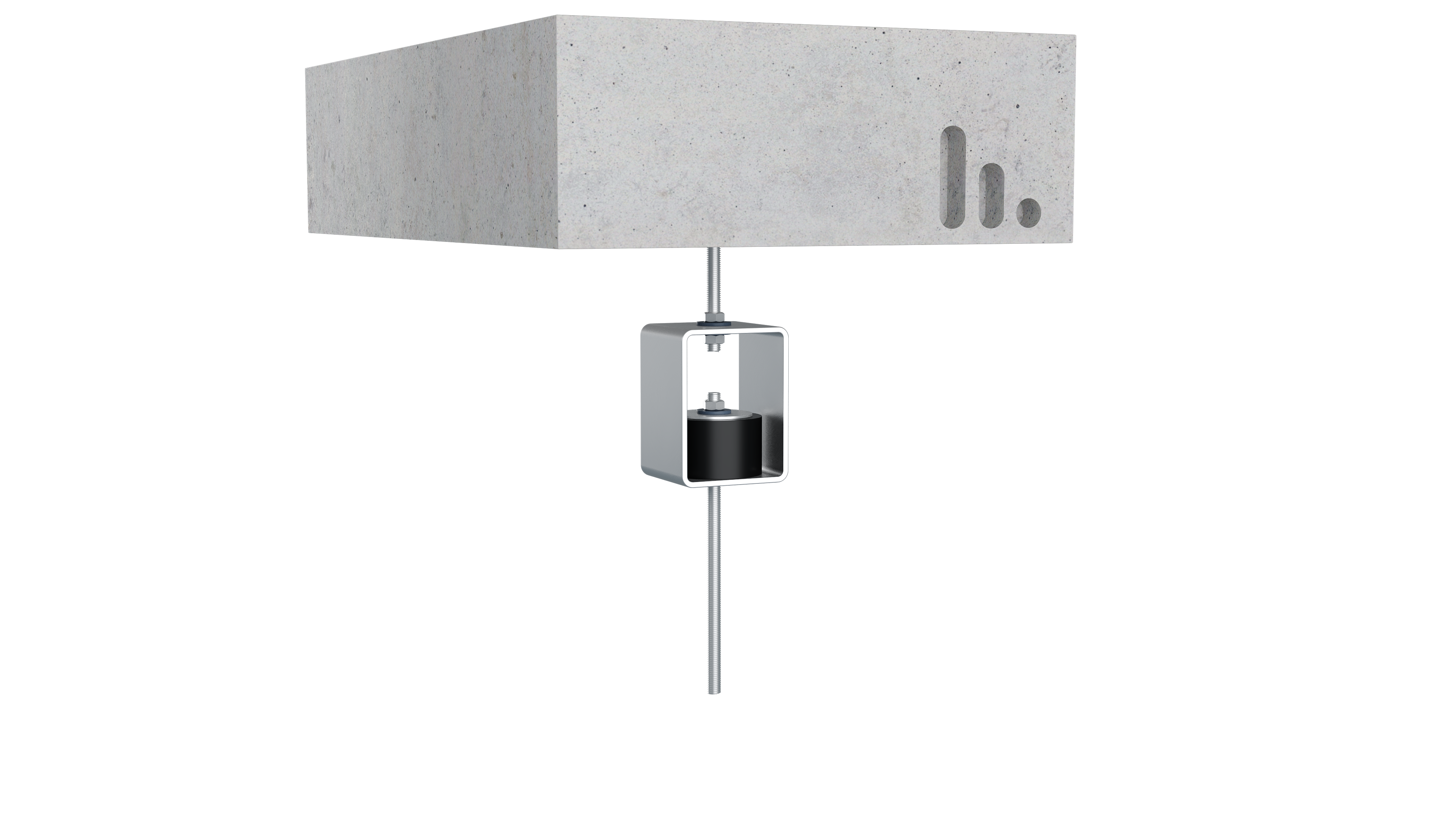

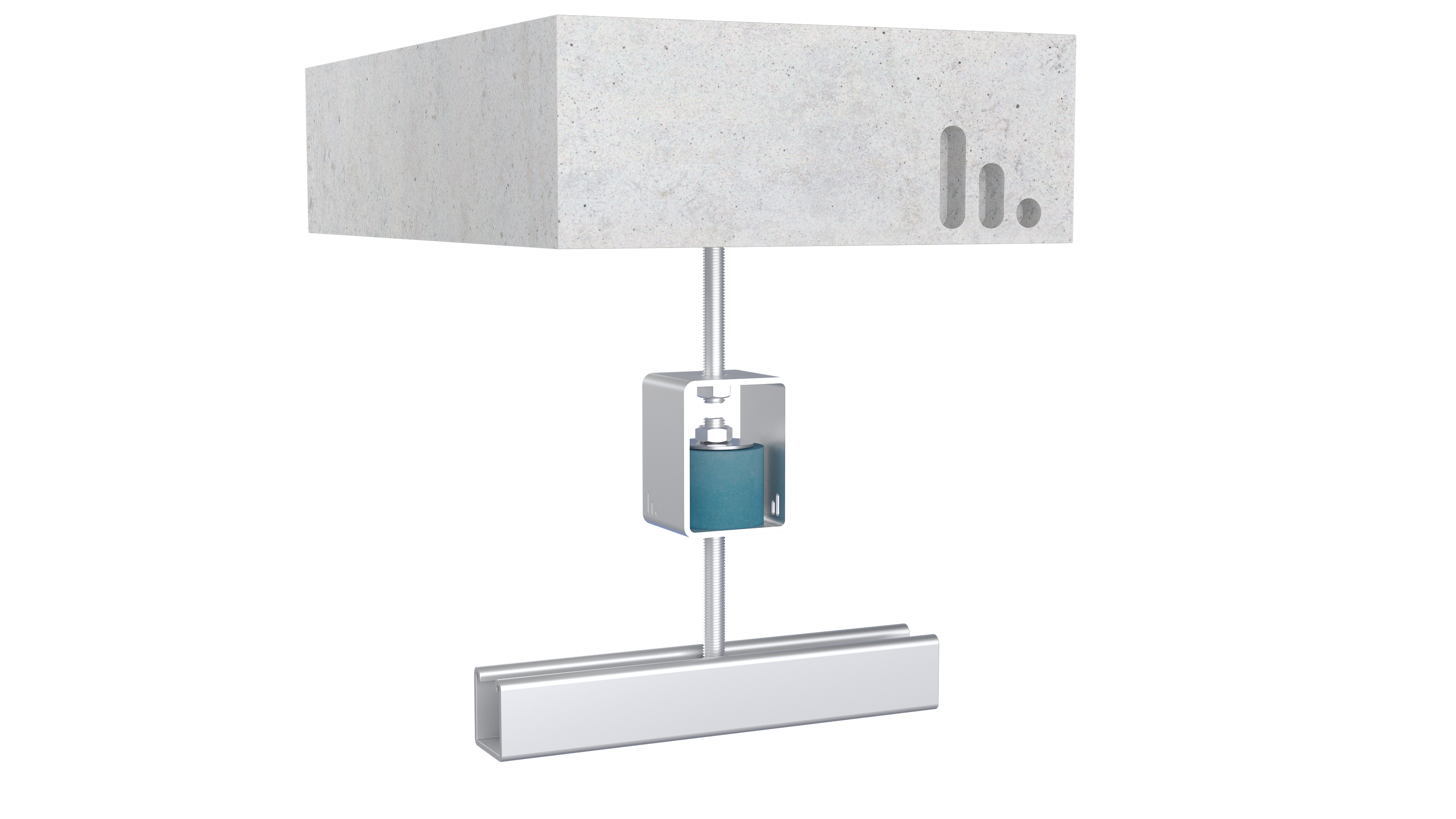

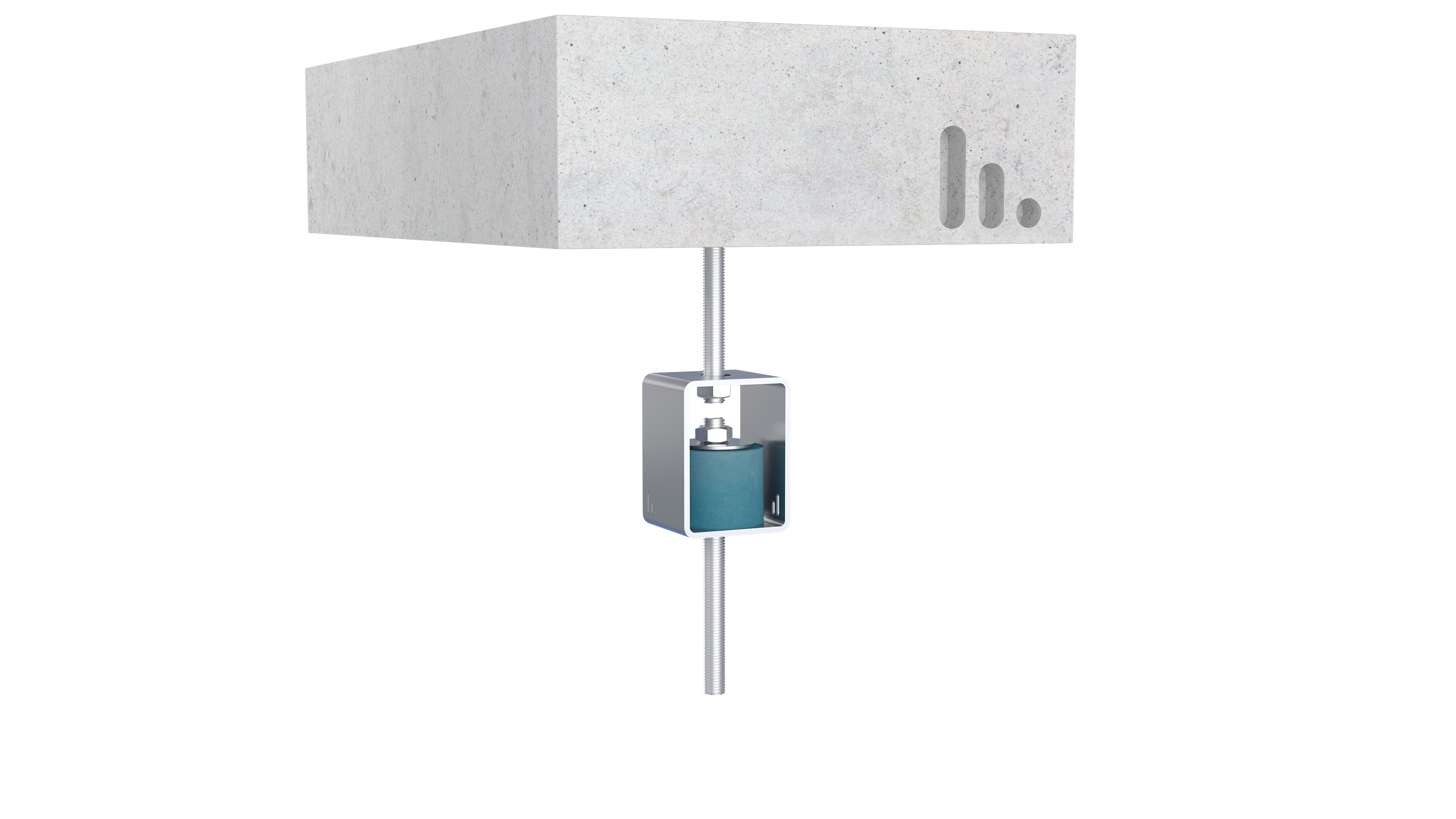

Stravilink ISH-P

Isolation Support Hanger with elastomeric Pads

Stravilink ISH-P is an Isolation Support Hanger with elastomeric Pads, designed to support heavy-duty elements or structures - such as mechanical equipment, ductwork or ceilings with stronger structures -  by efficiently handling high suspended loads.

The hanger is available in two load capacity grades:

  • Stravilink ISH-P1200: 30-150 kg per hanger
  • Stravilink ISH-P2200: 80-280 kg per hanger






Assemblies

Benefits

  • Specifiers

    For Specifiers

    Guaranteed Acoustical Performance:
    • Elastomeric pads with a natural frequency of 8 Hz at design load deliver reliable noise & vibration isolation
    • Two elastomeric pads available cover load conditions of 30 kg to 280 kg
    Flexible Design:
    • Flexible void or hanging options starting from 80 mm
    Safety & Structural Integrity:
    • Robust frame made of steel with hot-dip galvanised coating, for long-term durability
    Easy to Specify:
    • Easily integrate into project documentation and workflows with ready-to-use .dwg cross-sections and available online
    • Specify with confidence a CE-marked solution, meeting high safety and environmental protection requirements
  • Installers

    For Installers

    Time & Labour Savings:
    • High load capacity allows for fewer hangers to cope with high load equipment or structures
    Installation Ease:
    • Only two pad options for easy inventory management and onsite selection
    • Colour-Coded pads for easy ID onsite: right colour, no mistake
    • Flexible hanging options starting from 80 mm

  • Information Available to Download

Case Studies

  • Discovery Channel Studios (exterior)

    Discovery Channel Studios

    Stravifloor Channel, Stravilink PHS and Stravilink RHD are part of the box-in-box design to acoustically decouple the Discovery Channel Studios at Chiswick Park

  • Berklee College of Music Valencia (exterior)

    Berklee College of Music

    A box-in-box solution comprised of a Stravifloor Mount floating floor, combined with Stravilink QR & Stravilink ISH-P acoustic hangers for the walls and ceiling

  • MEININGER Budapest Great Market Hall (exterior)

    MEININGER Budapest

    To guarantee their guests a good night’s sleep, Stravilink ISH-P acoustic suspension hangers are used to decouple the HVAC units at MEININGER Budape
