Stravilink CC40/60-P

Channel Clip with Elastomeric Pads

Stravilink CC40-P and Stravilink CC60-P are Channel Clips with elastomeric Pads, specifically designed for suspending acoustic ceilings. They are compatible with 47 mm and 60 mm steel ceiling channels, respectively, and help optimize sound insulation between vertically stacked rooms.

Both clips are available in two load capacity grades:

  • Stravilink CC40-P240/Stravilink CC60-P240: 10-30 kg per clip
  • Stravilink CC40-P360/Stravilink CC60-P360: 20-45 kg per clip

Assemblies

Benefits

  • Specifiers

    For Specifiers

    Guaranteed Acoustical Performance:
    • Elastomeric pads with a natural frequency of 8 Hz at design load deliver reliable noise & vibration isolation
    • Two elastomeric pads available cover load conditions of 10 kg to 45kg
    • Elastomeric pad extends beyond the metal clip, ensuring optimal acoustical separation and avoiding any short-circuiting
    Flexible Design:
    • Flexible void options for limited space or increased performance, starting from 65 mm for the Stravilink CC40-P, 74 mm for the Stravilink CC60-P
    Safety & Structural Integrity:
    • Built-in safety clip prevents ceiling channel deformation under excess loads
    Easy to Specify:
    • Easily integrate into project documentation and workflows with ready-to-use .dwg cross-sections available online
    • Specify with confidence a CE-marked solution, meeting high safety and environmental protection requirements
    Sustainability:
    • Solution disassembles for sustainable end-of-life
  • Installers

    For Installers

    Time & Labour Savings:
    • Only three components with a snap-in design to speed up installation
    • Simple, intuitive snap-in system makes the process straightforward, even for less experienced workers
    Installation Ease:
    • Designed for a quick assembly of 47 mm and 60 mm steel ceiling channels
    • Colour-coded Pads for easy load ID onsite: right colour, no mistake
    • Threaded steel pad cap, no need for a nut for installation
    Versatility:

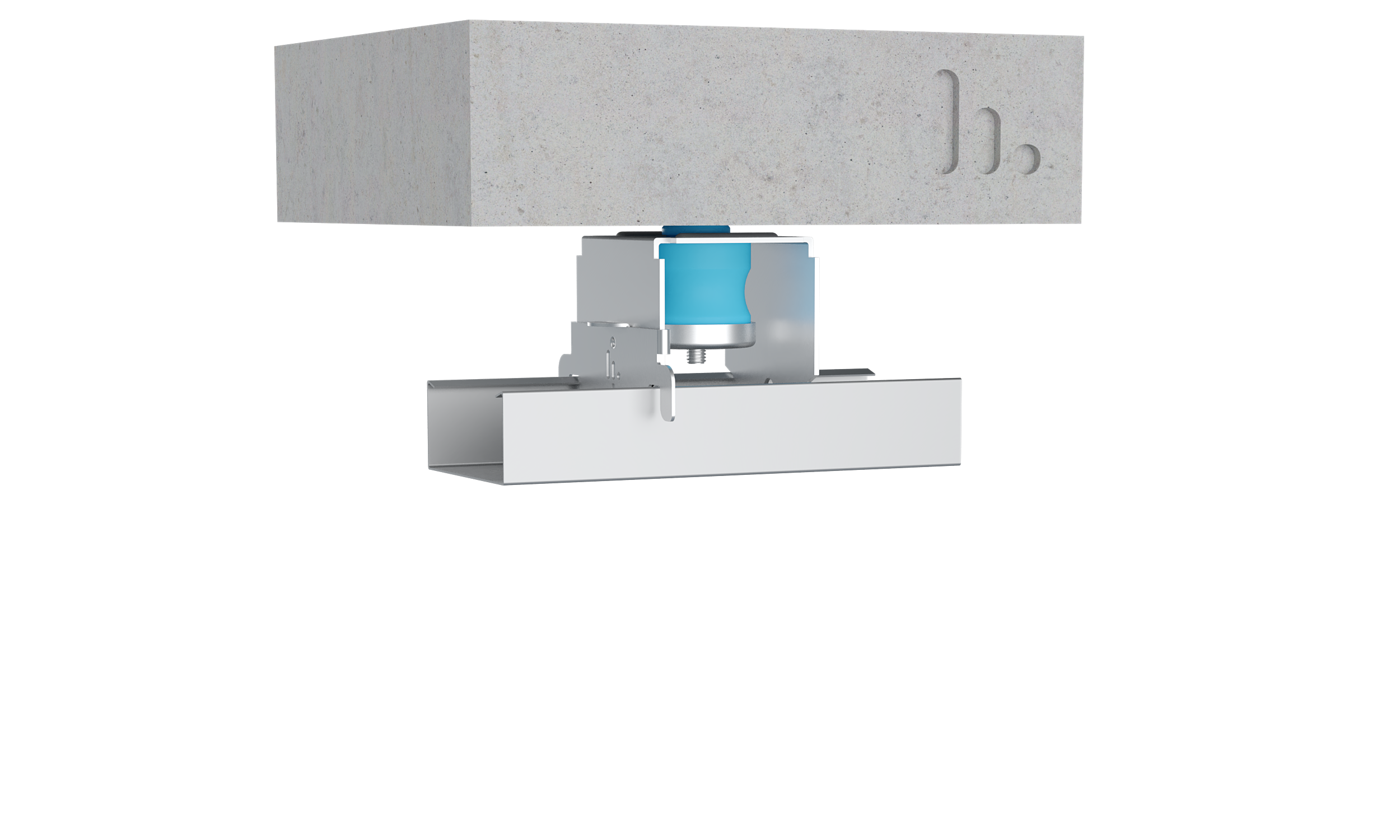

    • Use your preferred mounting method (direct mounting, rod suspension)
    • Install on various structures, including concrete and cross-laminated timber (CLT) slabs, reducing the need for multiple product types
    Safety:
    • Safety clip prevents ceiling channel deformation, ensuring long-term durability

Acoustical Test Data

This solution has been tested under the setup(s) shown alongside. If you’re looking for official test reports, editable test data (.csv) and typical cross sections (.dwg) of this setup or results of other configurations, visit Stravi‑dB, our free online test library.

STRAVI-DB

  • Information Available to Download

Case Studies

  • Palácio Ludovice Wine Experience Hotel (exterior)

    Palácio Ludovice Wine Experience Hotel

    Various Stravifloor and Stravilink solutions acoustically isolate the historic Palácio Ludovice Wine Experience Hotel in Lisbon, Portugal.

  • House of Music (exterior)

    House of Hungarian Music

    With a machine room next to the Sound Dome, and the need for premium acoustics at the House of Hungarian Music, several box-in-box structures were designed.

  • Theater Zuidplein ‘Kunstenpand’ (interior)

    Theater Zuidplein

    Stravibase SEB bearings support the auditorium floors of Theater Zuidplein ‘Kunstenpand’. The walls are connected to the steel structure using Stravibase Fix.

  • New University Building VU Amsterdam (exterior)

    Vrije Universiteit Amsterdam

    Stravilink CC60 and Stravilink PSJ acoustic ceiling hangers decouple the suspended ceiling in a number of rooms at New University Building VU Amsterdam.
